Export options¶

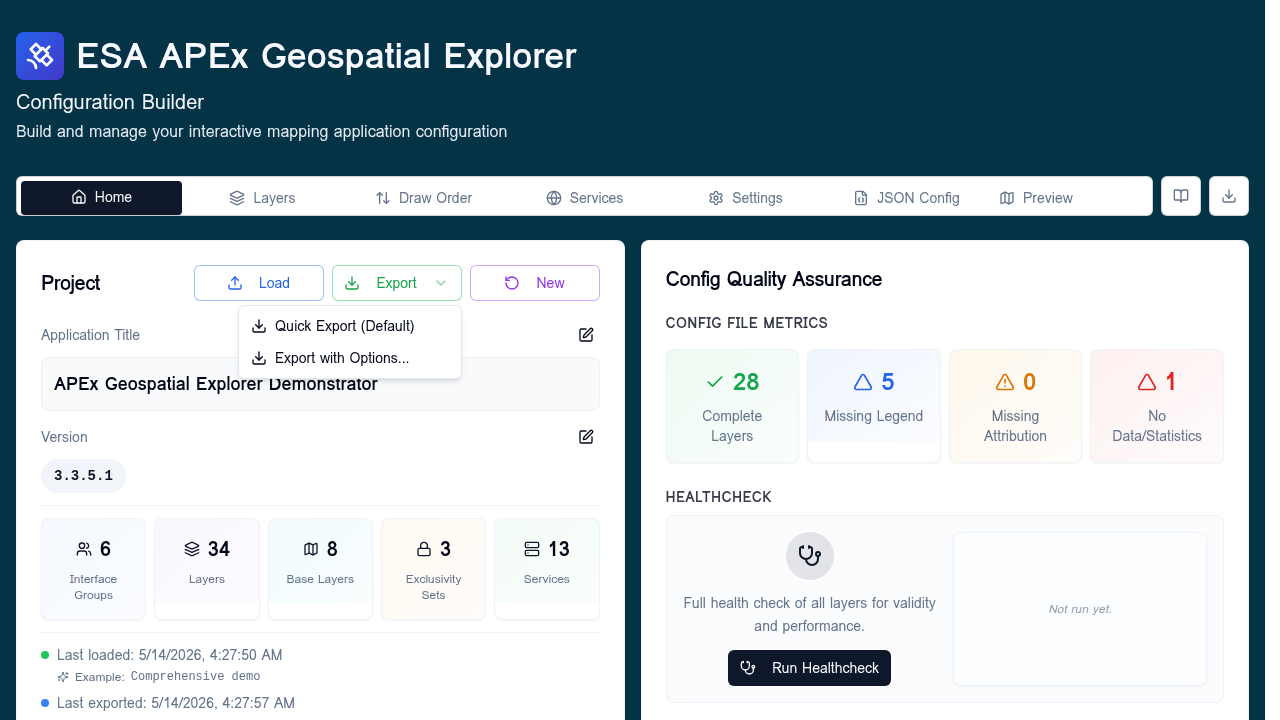

The Export action on the Home tab is a split menu with two entries: a one-click default export, and a dialog for opting in to formatting options.

Quick Export (Default)¶

Exports the configuration as JSON immediately, with no transformations. The downloaded filename is <exportPrefix>_YYYYMMDD_HHMM.json (the prefix is configured under Settings → Config Export Settings).

This is the recommended default — the file matches the in-memory configuration property-for-property, which is best for diffs and round-tripping.

Export with Options...¶

Opens a dialog with a single toggle.

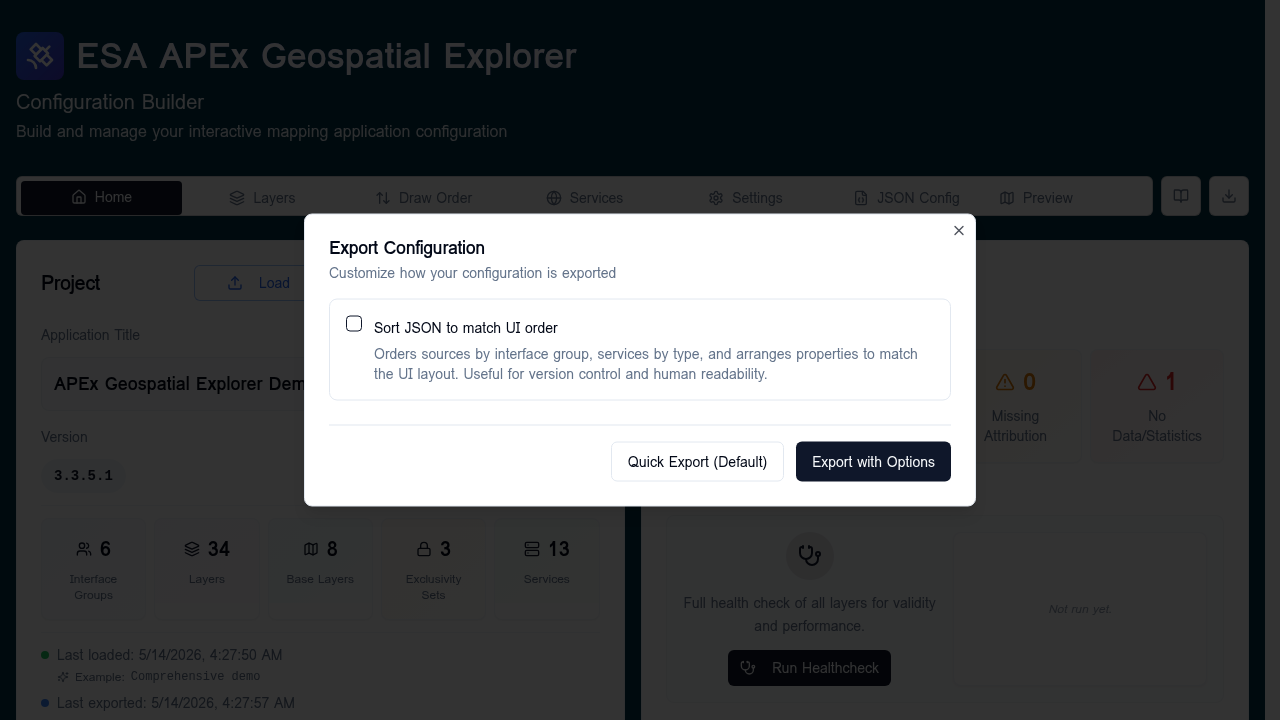

Export Configuration dialog — Sort JSON to match UI order checkbox with Quick Export and Export with Options buttons

Sort JSON to match UI order¶

When enabled (sortToMatchUiOrder: true), the exporter reorders the config to make it easier to read in version control and side-by-side with the UI. Specifically:

Sources are reordered to match the interface group ordering — grouped sources first (in group order), then ungrouped sources, then base layers.
Services are reordered by type priority — STAC first, then WMS / WMTS, then S3, then any others, with alphabetical ordering within each group.
Properties within each source are written in a fixed order: name, isActive, isBaseLayer, preview, meta, layout, timeframe, defaultTimestamp, exclusivitySets, hasFeatureStatistics, data, statistics, constraints, workflows.

When disabled (the default), no reordering is applied.

The dialog has two buttons:

Quick Export (Default) — exports immediately with options off, matching the menu's quick path.
Export with Options — exports with the chosen options applied.

Read-only operation

Sorting only affects the downloaded JSON. The in-memory config and the JSON config tab are not modified.

Filename format¶

All exports — quick or with options — produce a filename of the form:

<exportPrefix>_YYYYMMDD_HHMM.json

For example, config_20260514_1130.json. The month is the two-digit zero-padded number. Set the prefix on the Settings tab.
